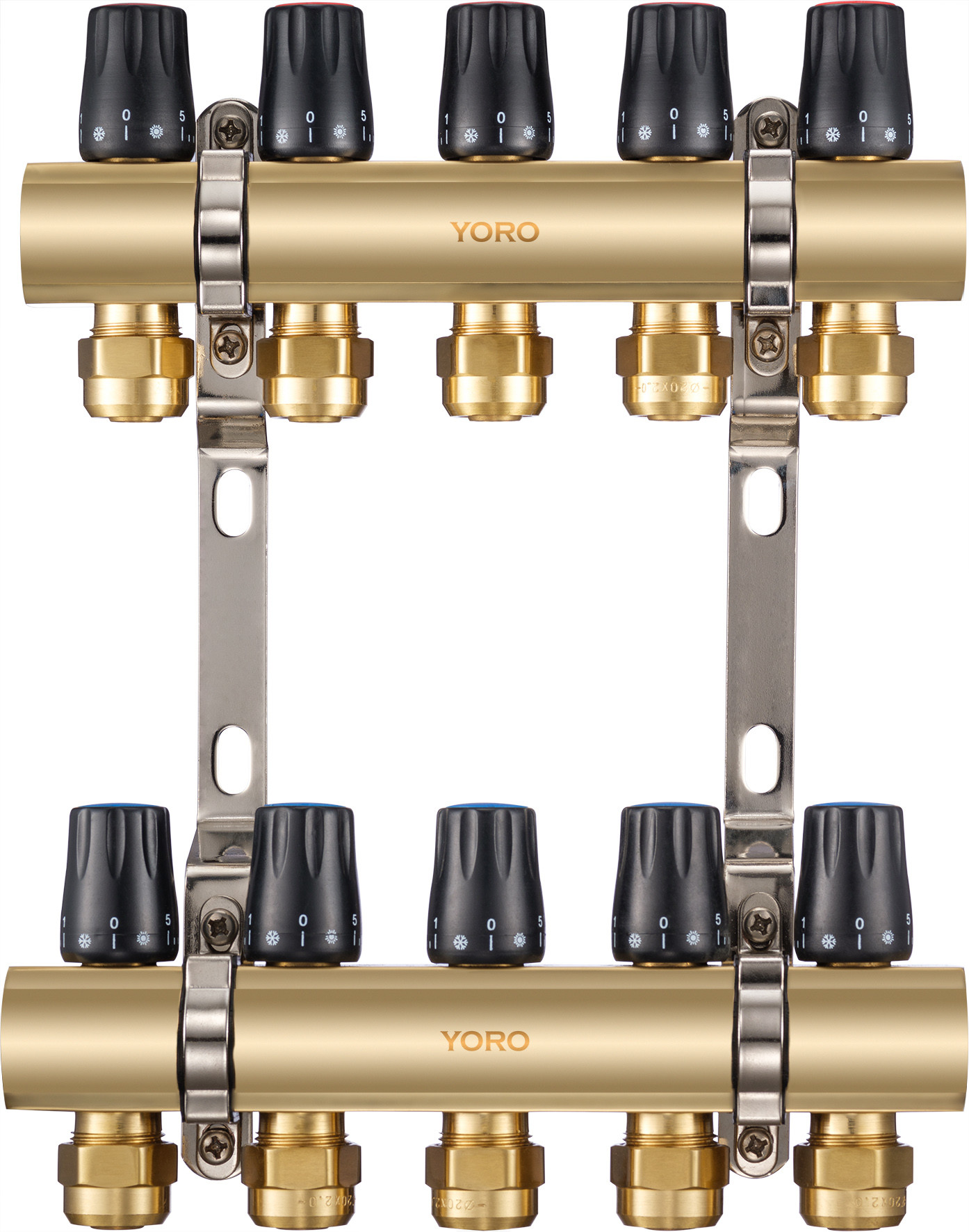

6103 Polished Brass Water Distribution Manifolds available from 2 to 12 Branches with IN/OUT Flowrate regulating handles

Name: 6103 Polished Brass Water Distribution Manifolds available from 2 to 12 Branches with INOUT Flowrate regulating handles
Brand: YORO
Price: 1 USD

Buy cheap 6103 Polished Brass Water Distribution Manifolds available from 2 to 12 Branches with IN/OUT Flowrate regulating handles product

Brand Name : YORO

Model Number : 6103

Certification : ISO9001, ISO14001, ISO45001Etc.

Place of Origin : Zhejiang, China

MOQ : 200 pairs

Price : To be Negotiated

Payment Terms : T/T

Supply Ability : 10000 pcs per month

Delivery Time : 25-30 working days

Packaging Details : each pair in an inner box with foam packing

Name : Polished Brass Water Distribution Manifolds available from 2 to 12 Branches with IN/OUT Flowrate regulating handles

Maximum Pressure Rate : 8 Bar Hydraulic

Working Temp. : 5℃ To 95℃

Workable Media : Cold & Hot Water

Body Material : Copper Zinc Alloy

Main Supply / Return Connections : F1" according to BSPP type

Branch Connections : Al-PL Pipe Adapter 12x16 Or 16x20

Vertical spacing : 220mm

Branch spacing : 50mm

Wall Thickness : 2.9mm

Surface Treatment : Polished, Natural Brass. or Chrome Coated, or Red Bronze Coated

Contact Now

6103 Polished Brass Water Distribution Manifolds available from 2 to 12 Branches with IN/OUT Flowrate regulating handles

Polished Brass Water Distribution Manifolds available from 2 to 12 Branches with IN/OUT Flowrate regulating Handles

Branches

Total Length(mm)

110

160

210

260

310

360

410

460

510

560

610
